Roller and Needle
  • Roller and Needle

Roller and Needle

  • Features

Material standard: GCr15, 52100, 100Cr6 , SUJ2, Stainless steel

Size

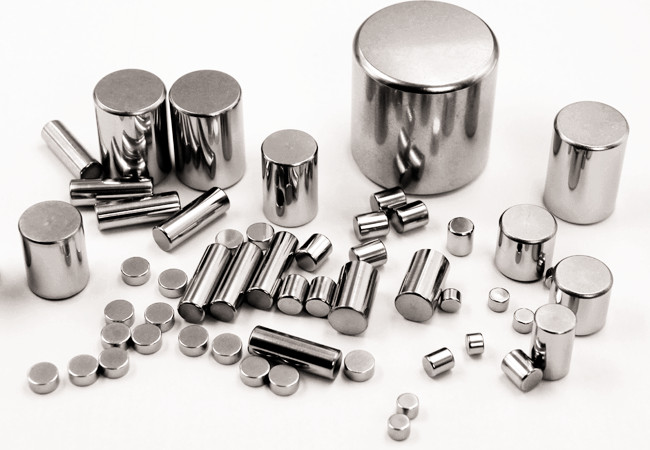

Cylindrical roller

Diameter 3-80mm

Length: 4-150mm



Roller needle

Diameter 1-10mm

Length: 4-60mm



Spherical roller

Diameter 10-60mm



Special and customized rollers are available as per customers’ request, the main products are bearing rollers, bearing needle rollers, roller pins, bearings and other mechanical parts.



Hardness: HRC58-65



Grade: G1,G2,G3



Length tolerance: 0.002



Diameter tolerance: 0.001



TIR: 0.006



Surface roughness: Ra0.05  Rz1.0



End surface shape: round, flat, crowning



Surface quality: polish-grind, superfinish grinding



Industry served

Semiconductors, solar energy, aerospace, automotive, cargo, material handling, packaging, and other industries.
